Prescott’s Group Medical Divisions

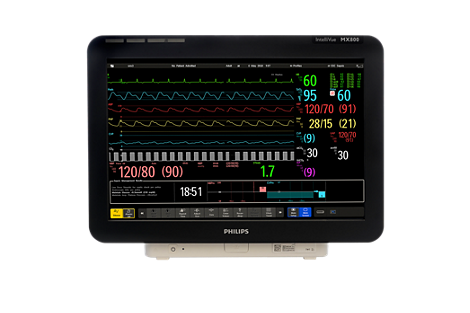

MX800 IntelliVue Monitor
Model Number: 865240
The Philips MX800 Monitor has a 19 inch color screen and a touch screen used for navigation. The unit receives patient data from an external parameter block and displays the parameters on the screen. This monitor is used as a bedside monitor and doesn't come with a battery power option.
The IntelliVue MX800 provides powerful monitoring unit with 19 inch touch screen. This monitor also features PC(iPC) option to access broad patient information. It works with Philips Multi-measurement Module, extension family, X2, X3, multiple FMS RACKs, M1026B, and G series AGMs. This unit is a bedside monitor. Common issues we see are power issues causing the unit not to power on or reboot intermittently. Other common issues include damaged LCDs and touch screens.
Troubleshooting help:
Default Passwords for Monitor :
Configuration Mode: 71034
Demo Mode: 14432
Service Mode: 1345
Default Admin Password: 2104
Helpful Files:
- Damaged screen
- Scratches on touchscreen
- Dead
- Won’t power on
- Network Issue
- MSL connector
Related Products
IntelliVue MP70 Monitor
Edwards Lifesciences Vigilance 1, 2 Monitor
Datascope/Mindray DPM6 Monitor
IntelliVue MP90 Monitor
Everything that comes out of our shop has been cleaned, serviced, and is ready for use.
